Easy Steps to Measure for Paneling:
Print out 1 copy of this page for each wall that you are
paneling and then fill out the form for each wall. Use the diagram at

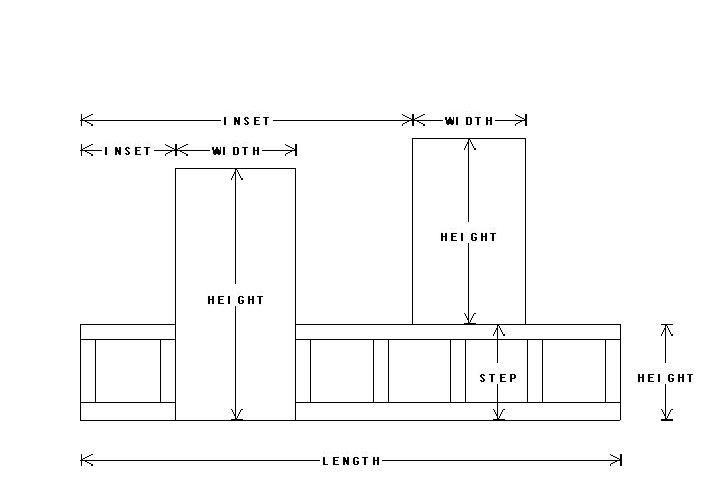

the bottom of this page to understand the types of measurments that
you will be taking.
All measurements should be in inches, to the nearest 1/16th (not in feet
& inches)
- Enter a short name for the wall on Line 1 (eg: Dining Room
North). This will help you coordinate different walls in a room.
- Consider connecting walls:
- If the wall to the left of the wall you are now measuring will have
paneling, circle Y on line 2a.
- If the wall to the right of the wall you are now measuring will have
paneling, circle Y on line 2b.
- As shown in the figure below, measure the overall length of the wall at floor level, and the
overall length of the wall at the top of the paneling and record the
LARGER dimension on line 3. Some corners are not plumb, in which case we
make the paneling to the larger dimension.
- As shown in the figure below, measure from the floor to the top of where you want the paneling
to end, and enter on line 4.
- For each door along the wall, measure the Inset, Width, and
Height. The starting point for the Inset measurement should be the
left hand corner of the wall. The ending point is the left most edge
of the door casing (where the paneling will stop). The Width is
measured from the left most edge of the left door casing to the right
most edge of the right casing (where the panling will resume). If you are changing the door casings
as part of this project, your Inset and Width measurements should be
based on the new casing, not the existing casing.
- For each window along the wall whose bottom will fall below the
paneling: Measure the Inset, Width, Height and Step. The step is the
distance from the floor to the bottom window, which will be some
number less than the Paneling Height in step 4.
You can then enter the data from this form into the Estate Millwork
Online Paneling Designer,
or fax to our customer service department at (814) 267-3369.
If you need any assistance, please call us at (412) 322-6880 or email
us at sales@estatemillwork.com.
| Estate Millwork Paneling Measurement Form
|
| 1. Wall Name ________________________________
|
| 2a. Paneling on Wall to Left of this Wall? (Y N)
|
| 2b. Paneling on Wall to Right of this Wall 1(Y N)
|
| 3. Overall Length __________"
|
| 4. Paneling Height __________"
|
| 5a. Door #1 | Inset _______ " | Width __________ " | Height _________ " | |
| 5b. Door #2 | Inset _______ " | Width __________ " | Height _________ " | |
| 5c. Door #3 | Inset _______ " | Width __________ " | Height _________ " | |
| 5d. Door #4 | Inset _______ " | Width __________ " | Height _________ " | |
| 6a. Window #1 | Inset _______ " | Width __________ " | Height _________ " | Step _________"
|
| 6b. Window #2 | Inset _______ " | Width __________ " | Height _________ " | Step _________"
|
| 6c. Window #3 | Inset _______ " | Width __________ " | Height _________ " | Step _________"
|
| 6d. Window #4 | Inset _______ " | Width __________ " | Height _________ " | Step _________"
|
